Product Description

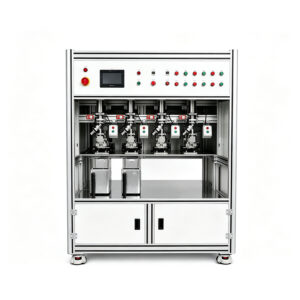

The Cooling-Thermal Automatic Performance Testing Machine is engineered for end-of-line quality testing of heat pipes and vapor chambers in high-volume production environments. With 6 test stations and a production capacity of 250 pieces per hour, it delivers fast, accurate thermal performance measurement — covering maximum test power up to 90W, test area up to 70 x 170mm, horizontal and vertical test angles, and 2D stackable test configurations.
The advanced model extends test power to 200W, supports 4 to 6 temperature measurement points, dual heat source configurations, single and dual heat sources, 2D and 3D tube compatibility, and integrates an ice water cooling system (10°C to 50°C) with LabView software control — providing full production-line thermal performance validation without requiring thermal conductive adhesive.
Key Specifications
| Production Capacity | 250 Pcs/Hr |
| Work Stations | 6 stations |
| Maximum Test Area | 70 x 170 mm |
| Maximum Test Power | 90 ± 0.25 W |
| Heating End Size | 15 x 15 x 30 mm |
| Heat Source | Single heat source |
| Test Points + Heat Source | 3+1 hot plate / 2+1 heat pipe |
| Test Shape Compatibility | 2D stackable |
| Test Angles | Horizontal, vertical |
| Test Pressure Control | Adjusted through air pressure |
| Voltage / Power | AC 220V x 1-phase x 8 kW |
| Machine Dimensions | 1,725 x 1,080 x 1,650 mm |
Where the Automatic Performance Tester Is Used?
The Cooling-Thermal Automatic Performance Testing Machine is the final quality gate in the heat pipe and vapor chamber production line — verifying that every finished unit meets its thermal performance specification before it leaves the factory. It is used by manufacturers who need reliable, high-speed thermal performance measurement integrated directly into their production process, not just in a separate laboratory environment.
It is widely deployed in the following production environments:
- Heat pipe manufacturers — end-of-line thermal resistance testing for D5-D10 copper heat pipes used in CPU coolers, server heat sinks, laptop thermal modules, and industrial electronics cooling
- Vapor chamber (VC) production facilities — performance testing of VC assemblies for AI server chips, high-power GPU cooling, and data center thermal management hardware
- New energy & EV thermal management manufacturers — testing heat pipes and VCs used in battery pack cooling systems, power inverter modules, and on-board charger thermal management
- Contract heat pipe manufacturers — high-throughput batch testing with 6 stations running simultaneously, supporting 250 pcs/hr output with sub-60-second test cycles
- R&D and engineering teams — characterising heat pipe and VC performance across different operating angles, power levels, and temperature conditions using LabView-controlled test programs
If your production requires automated thermal performance testing of heat pipes or vapor chambers at production speed — with test results logged, compared against pass/fail thresholds, and traceable to individual units — this machine is built for your line.
Why Choose Cooling-Thermal’s Performance Testing Machine?
| Cooling-Thermal Automatic Tester | Typical Market Alternative | |
|---|---|---|
| Production capacity | 250 pcs/hr (6 stations) | Often lower, fewer stations |
| Shape compatibility | 2D and 3D, stackable | Often 2D only |
| Test angles | Horizontal and vertical | Horizontal only common |
| Heat source options | Single and dual heat source | Single only |
| Temperature points | Up to 6 measurement points | 2-3 typical |
| Test power range | Up to 200W | Often lower |
| Cooling system | Ice water machine 10-50°C | Air or basic water cooling |
| Software | LabView — programmable | Proprietary / limited |
| No thermal adhesive | Yes — no adhesive required | Often requires adhesive |
| Customization | OEM/ODM available | Standard spec only |
| Sample testing | Available before order | Rarely offered |
| After-sales support | Dedicated 5-person maintenance team | Limited |
Delivery, Installation & After-Sales Support
Factory Acceptance Test (FAT) Before Shipment
Every performance testing machine undergoes a full Factory Acceptance Test at our Kunshan facility before dispatch. All parameters — station accuracy, power delivery stability, cooling system temperature control, LabView data acquisition, pass/fail logic, and throughput at rated capacity — are verified against your confirmed test specifications. You are welcome to attend in person or via live video.
On-Site Installation & Commissioning
Our engineers travel to your facility to install the machine, connect the ice water cooling circuit, configure the LabView test programs for your product specifications, and run a full production trial. We confirm that the tester is achieving the required throughput and measurement accuracy before handover.
LabView Test Program Setup & Operator Training
We configure the LabView software with your product test specifications — power levels, temperature thresholds, flow rates, pass/fail limits — and provide hands-on training for your operators and quality team. Full technical documentation is provided in English, including test program management, calibration procedures, and maintenance schedule.
Long-Term Calibration & Maintenance Support
Our dedicated 5-person maintenance team provides remote support and on-site visits for calibration, sensor replacement, cooling system servicing, and software updates. Periodic calibration is critical for thermal measurement accuracy — our team provides scheduled calibration support to keep your test data traceable and reliable over the equipment lifetime.
Export & Shipping
We handle full export documentation and support FOB, CIF, and DDP shipping terms. Our testing equipment has been shipped to Japan, South Korea, India, Turkey, Vietnam, and Taiwan. Our team is experienced in international logistics for precision measurement equipment, including packaging for transit protection and customs documentation.
Unit Loading across 6 Test Stations
Test Parameter Setup via LabView
Thermal Performance Measurement
Test Angle Verification (Optional)
Automatic Results Logging & Unit Sorting
The complete test cycle time is under 60 seconds per unit on the advanced model, supporting a throughput of 240-250 pcs/hr across the 6-station configuration — making it compatible with the output rates of upstream heat pipe production equipment without creating a bottleneck at the testing station.
