Heat Pipe, Vapor Chamber & Thermal Module Production Lines

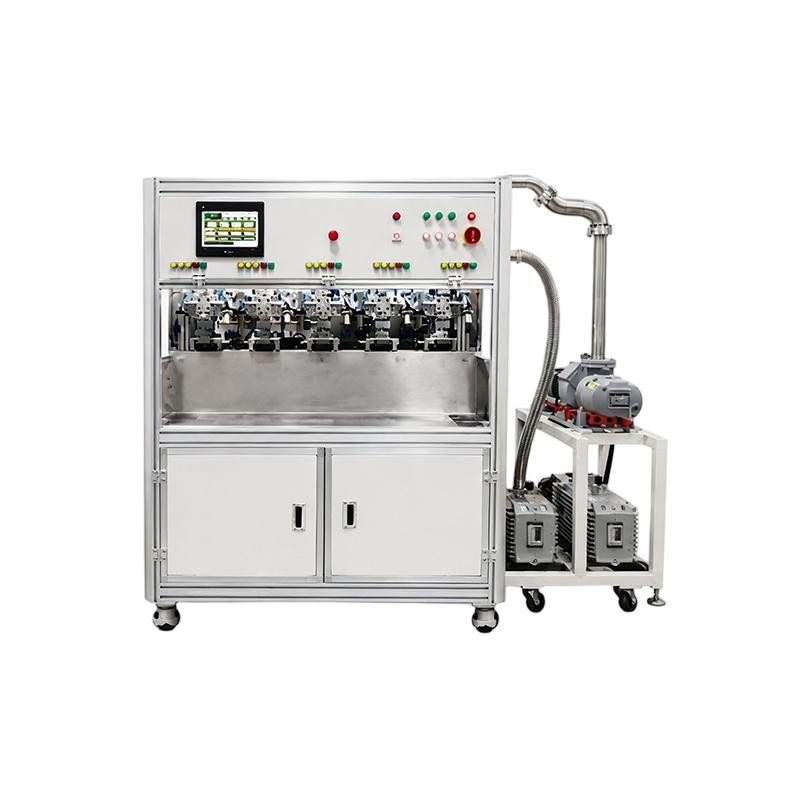

A heat pipe production line is an integrated manufacturing system used to produce heat pipes through multiple production processes. Depending on the product design, the line can include tube cutting, forming, cleaning, powder filling, working-fluid filling, vacuuming, sealing, welding, testing and other processes.

The equipment configuration depends on the heat pipe structure, dimensions, materials, production capacity and required automation level.

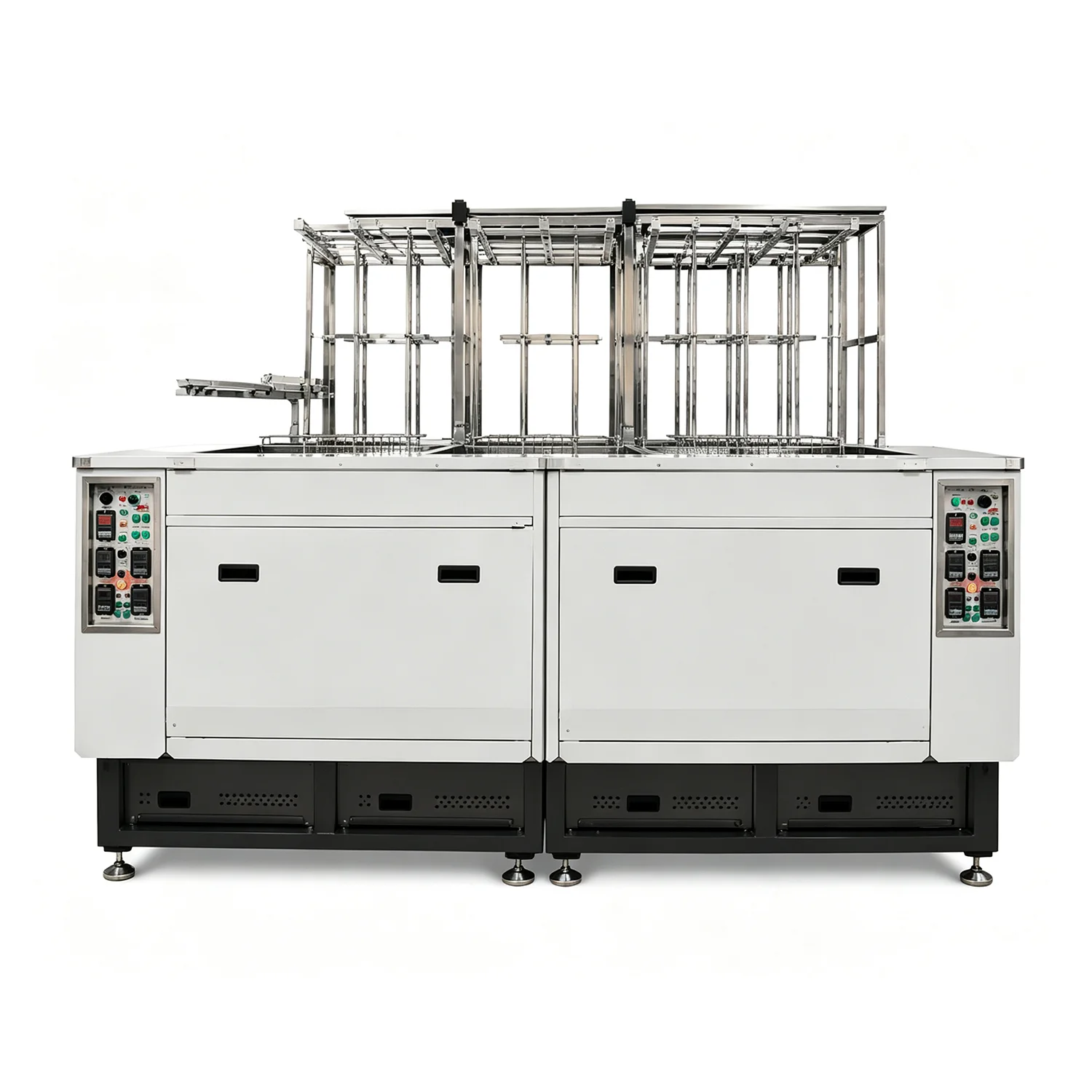

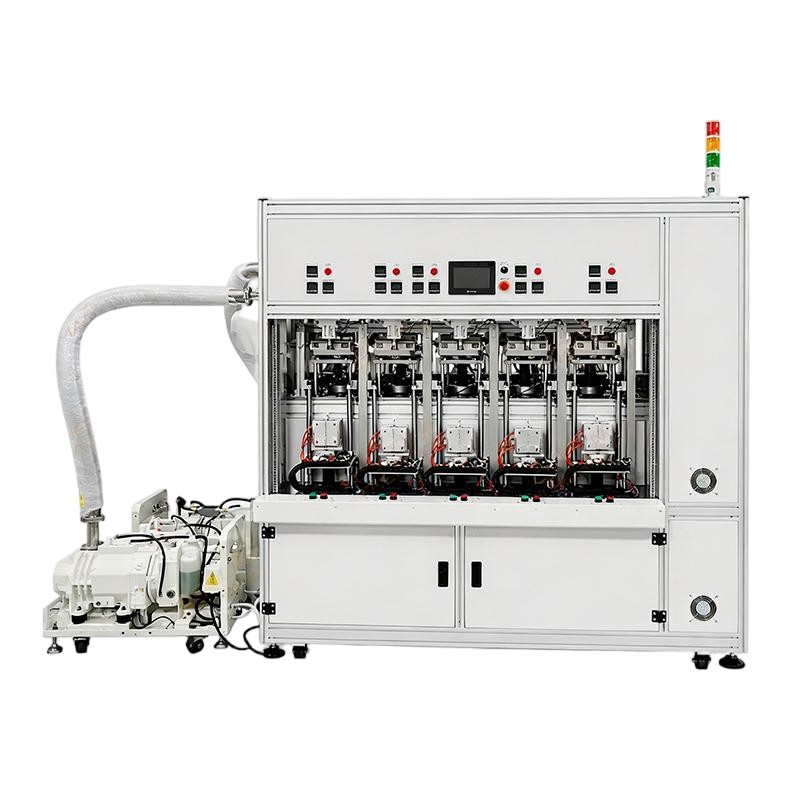

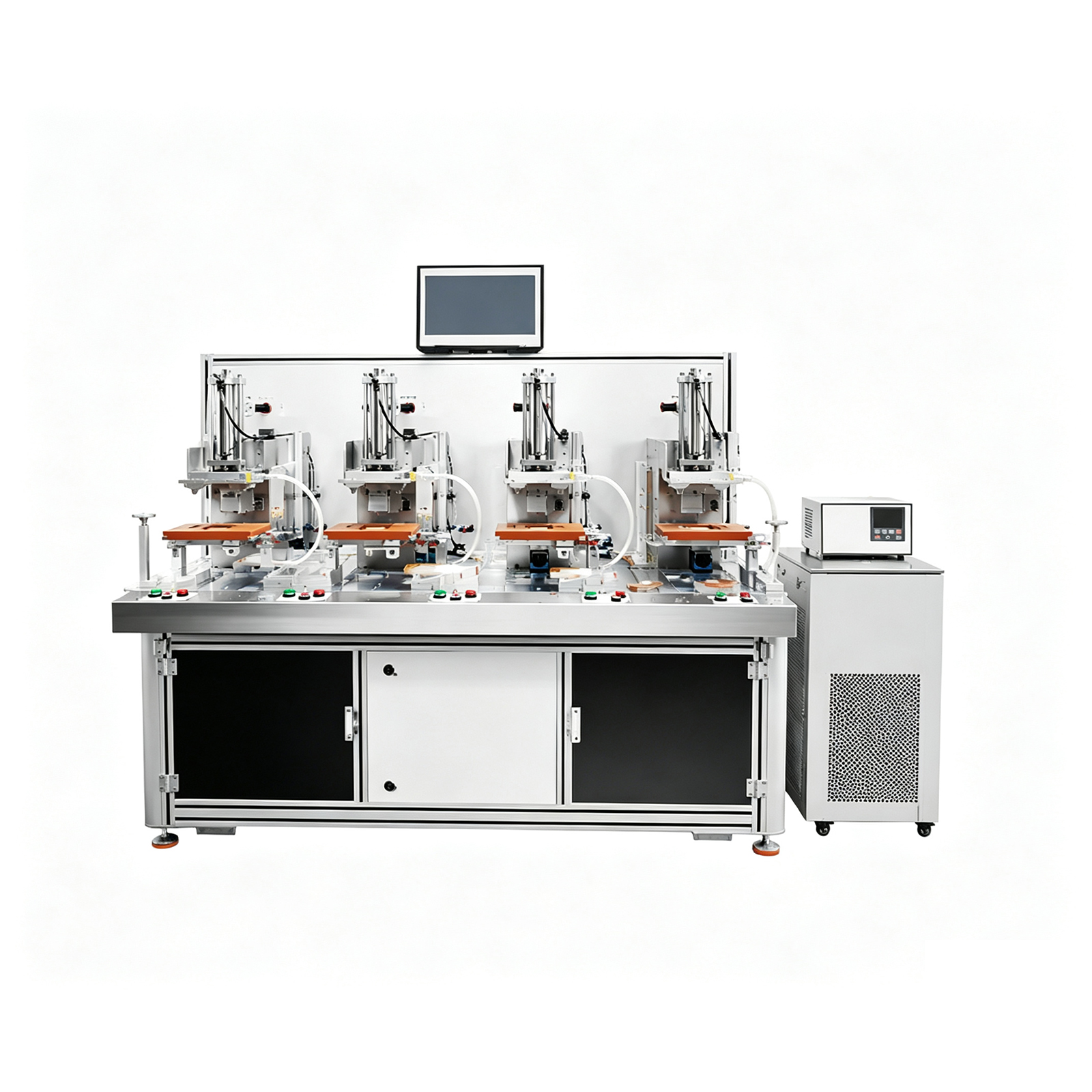

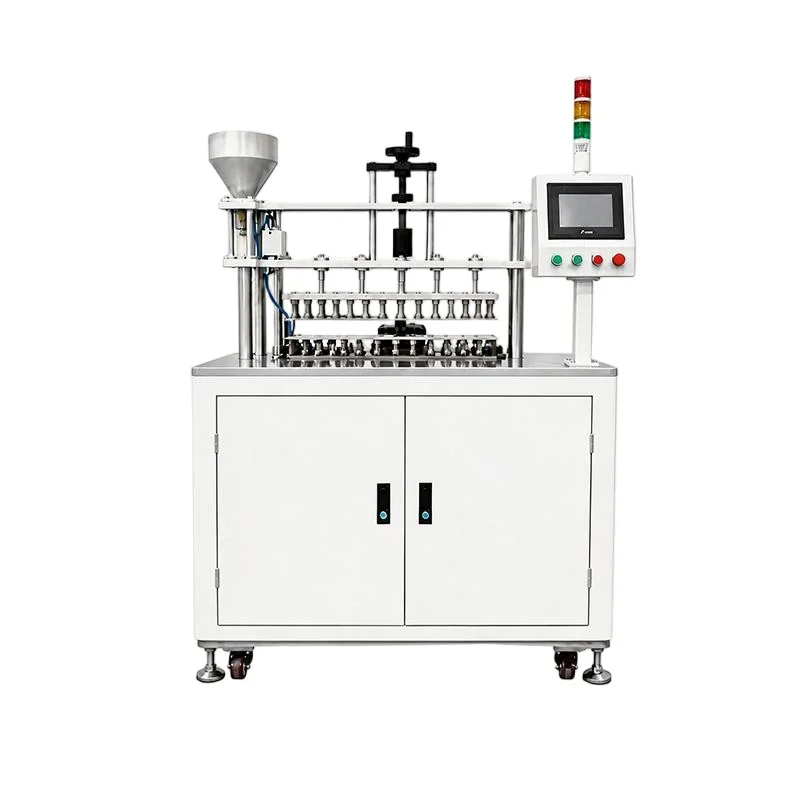

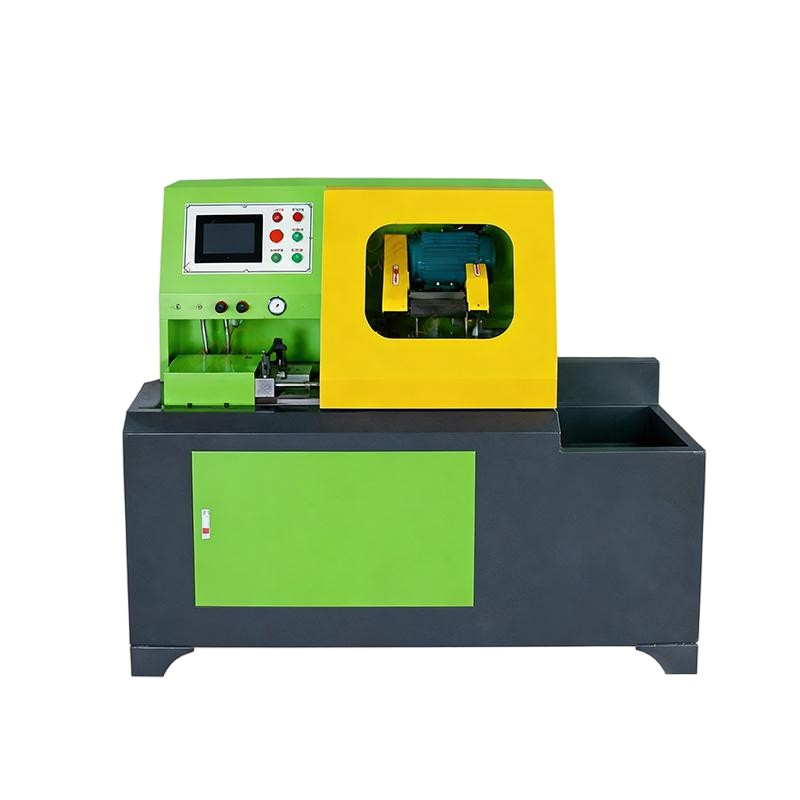

A heat pipe manufacturing line can include different machines according to the production process. Common equipment includes tube cutting machines, tube forming machines, cleaning equipment, powder filling equipment, vacuum and degassing systems, sealing and welding equipment, and testing equipment.

For high-volume production, automated material handling and process integration can also be added to improve production efficiency and consistency.

A vapor chamber production line combines several manufacturing processes to produce flat vapor chambers for thermal management applications.

The process may include material preparation, forming, cleaning, internal structure preparation, working-fluid filling, vacuum evacuation, sealing, welding, shaping and performance testing.

The exact process depends on the vapor chamber design, dimensions, materials and manufacturing requirements.

Vapor chamber manufacturing may require forming equipment, cleaning systems, filling equipment, vacuum equipment, sealing and welding machines, hot pressing equipment and testing systems.

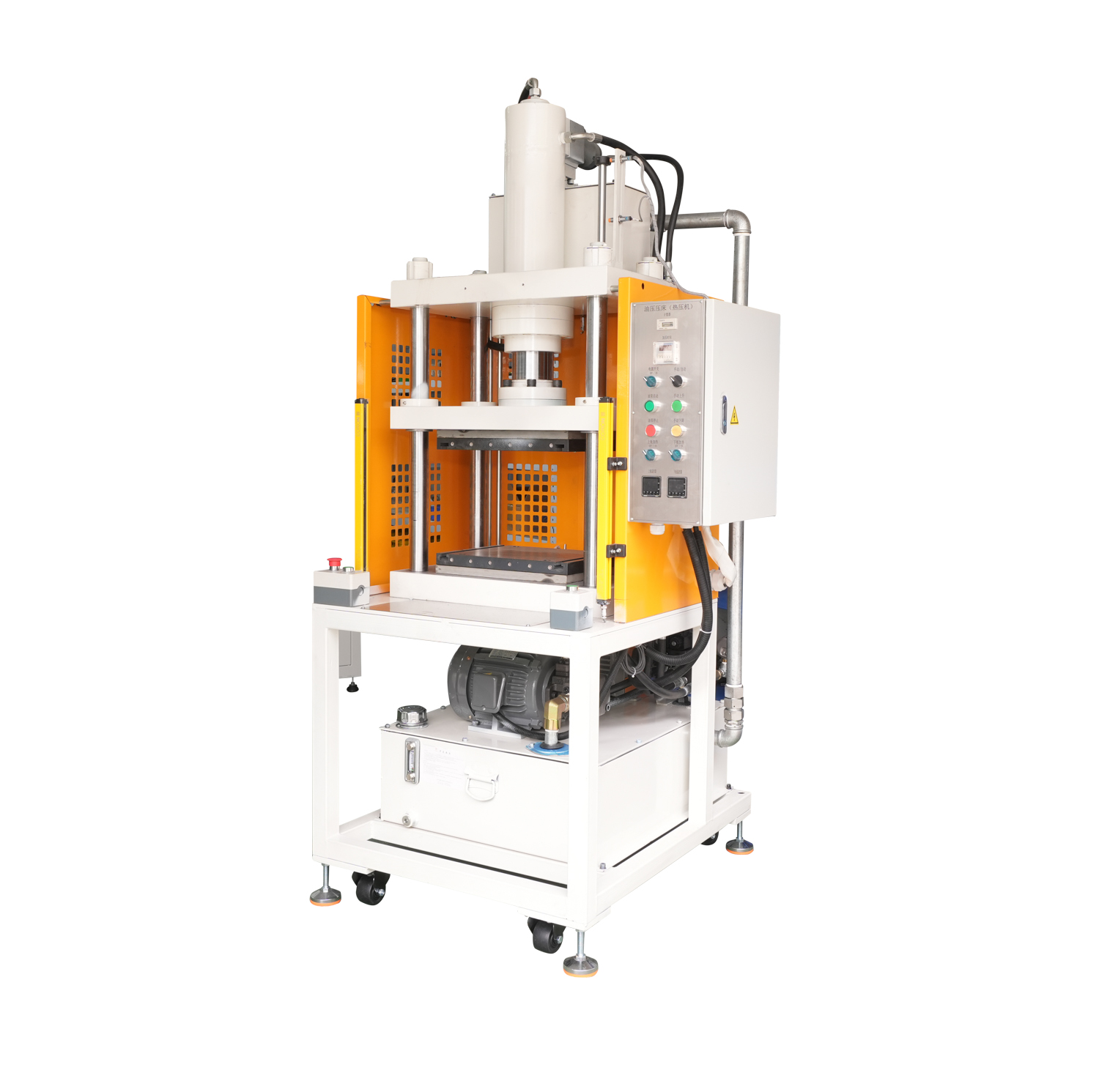

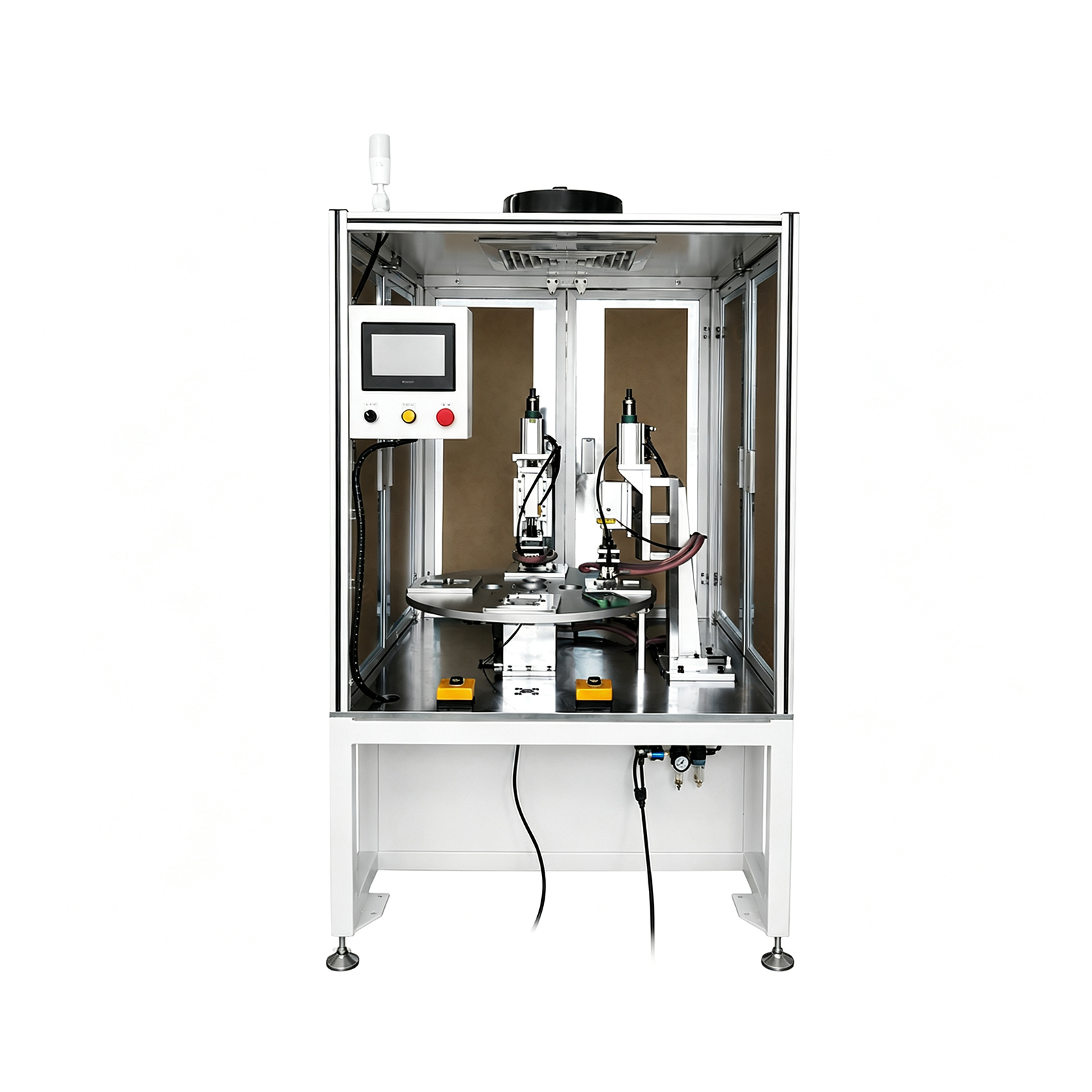

For example, a production line may integrate vapor chamber forming, vacuum evacuation, laser welding and hot pressing processes into one manufacturing system.

The equipment configuration can be adjusted according to the product structure and target production capacity.

Yes. Production lines can be designed according to the customer’s product specifications, manufacturing process and production requirements.

Customization can cover equipment configuration, production capacity, automation level, material handling, process layout, testing systems and line integration.

Before designing the line, the product structure, dimensions, materials, production volume and required manufacturing processes should be evaluated.

Yes. Automation can be introduced at different stages of the production process.

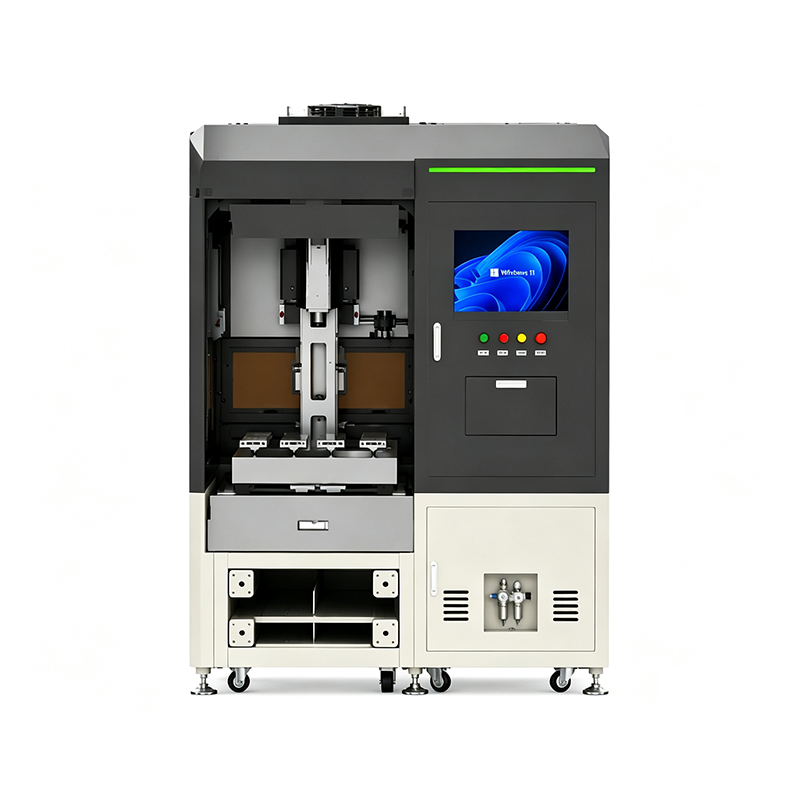

Depending on the required production capacity, the line can include automated feeding, material transfer, positioning, filling, vacuuming, welding, inspection and testing systems.

The appropriate automation level should be selected according to production volume, product design, labor requirements and investment objectives.

Production capacity is determined by several factors, including product type, cycle time, process requirements, equipment configuration, working hours and automation level.

For example, a heat pipe production line designed for mass production may require different equipment configurations from a line designed for small-batch or customized production.

We evaluate the manufacturing process and target output before developing the production line configuration.

A thermal module production line is a manufacturing and assembly system designed to produce integrated thermal management components.

Depending on the product, the line may include component preparation, heat pipe or vapor chamber assembly, heat sink integration, bonding, welding, pressing, inspection and final testing.

Thermal module production lines can be configured for applications such as consumer electronics, servers, telecommunications equipment, automotive electronics and power electronics.

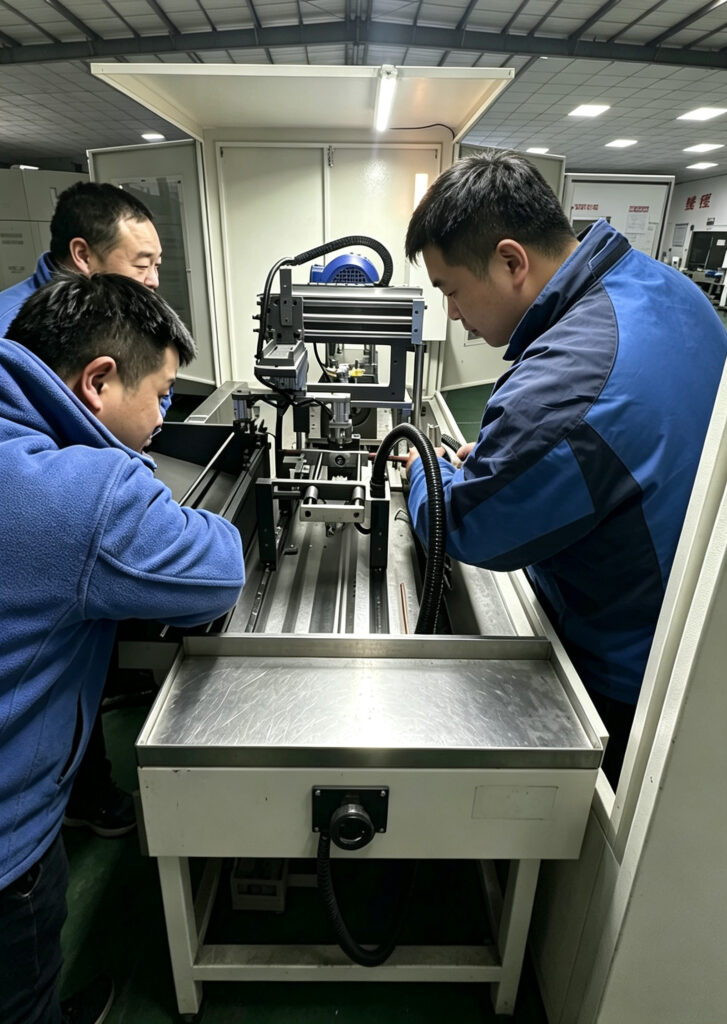

Yes. Production line projects can include equipment installation, system integration, commissioning and production testing.

Technical support can also cover equipment operation, process adjustment, production training and troubleshooting.

The specific service scope can be defined according to the project requirements and production line configuration.

The answer depends on the product structure and manufacturing process.

Some equipment can be designed for multiple product specifications or product models, while other processes require dedicated machines.

For flexible production, the line can be designed with adjustable tooling, changeable fixtures and configurable process equipment where practical.

The production line configuration should be evaluated based on the products that need to be manufactured.
